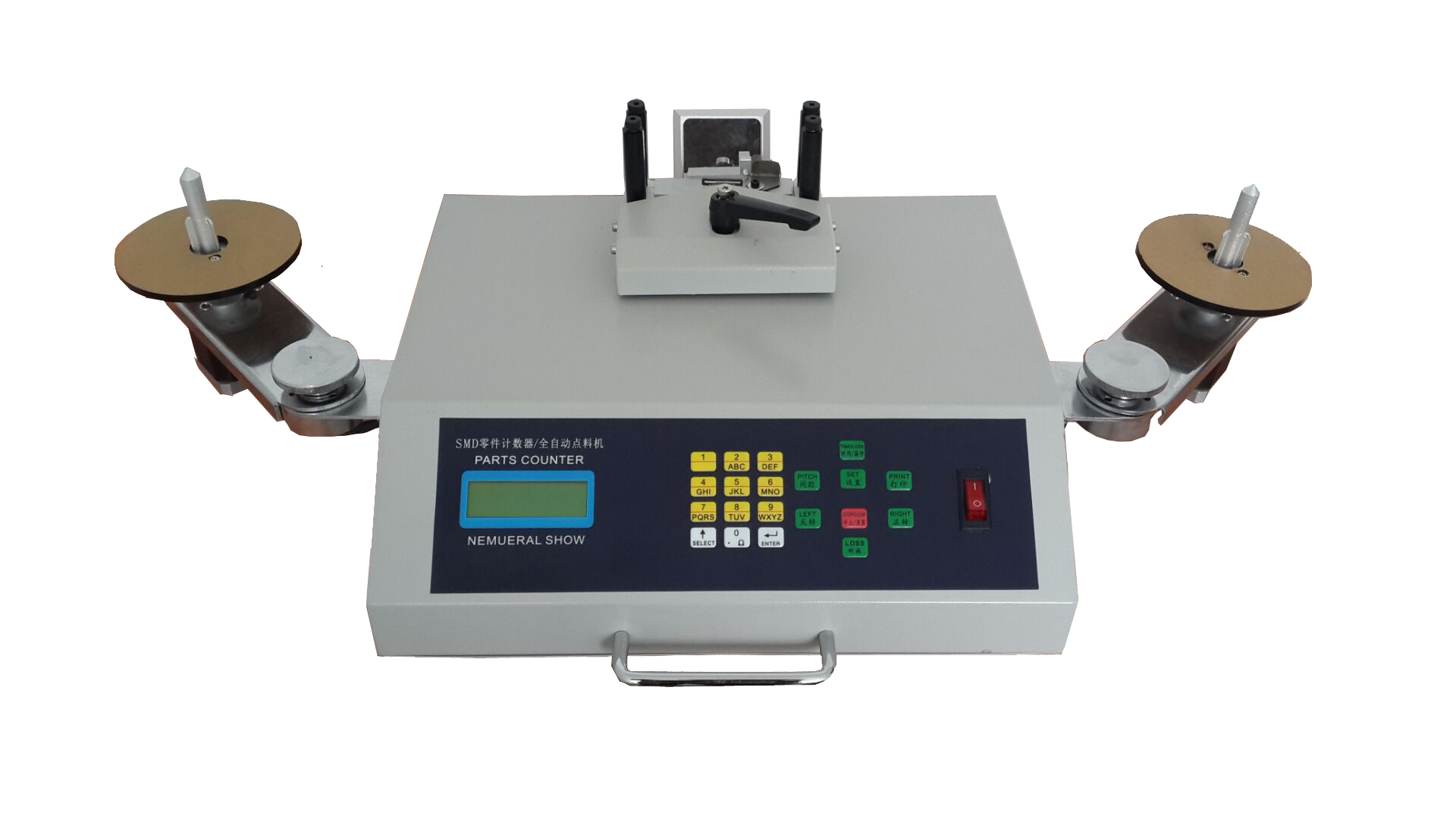

Automatic parts counter MZ-902Q

Fully automatic SMT high speed adjustable

technical parameter technical parameter

Application range

Material belt wheel diameter:< span style="font-size:16px;">anySMDmaterial tape Wheel size can be used(e.g. 0201,0402,0603,0805,1206,1210,1812,2010,2512and other packaged resistors, capacitors, chips,LEDetcSMDmaterial)

Tape spacing: 1,2, span>4,8,10,12,16, 24,32,44,56mmCycle setting

Tape width: 2,4,8,12,16,24,32, 44,56mm

product features

AutomaticSMTHigh speed adjustable

has automatic and manual dual working modes, suitable for different occasions.

The number of parts can be preset

Both forward and reverse can be counted, and the number can be calculated accurately with zero error.

Can be installed with scanner and barcode printer

Small size, light weight, easy to carry

Technical parameter:

  1. Power supply AC220V

  2. Effectiveness5000—10000PCS /20

  3. Rated power30W

  4. Count-99999~99999pcs

  5. Mechanical DimensionsL350*W774*H184mm

  6. Weight10kg
